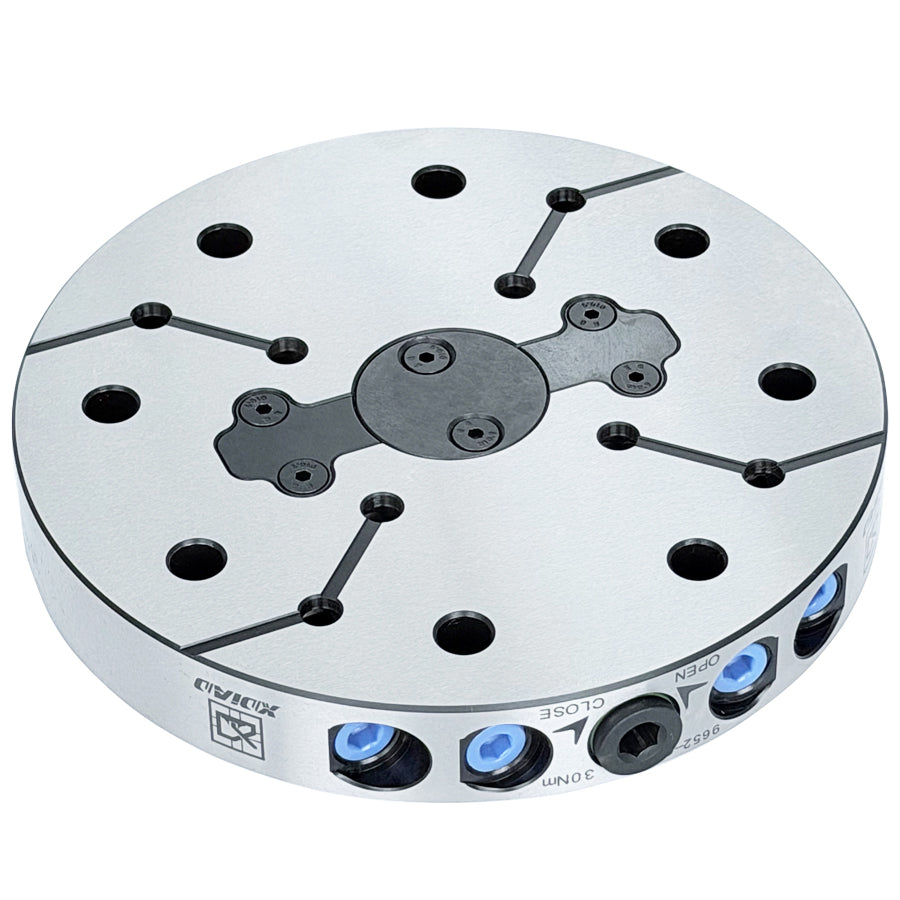

CNC Xindian Precision 96mm/52mm Machine Tool Manual Chuck D96-C52

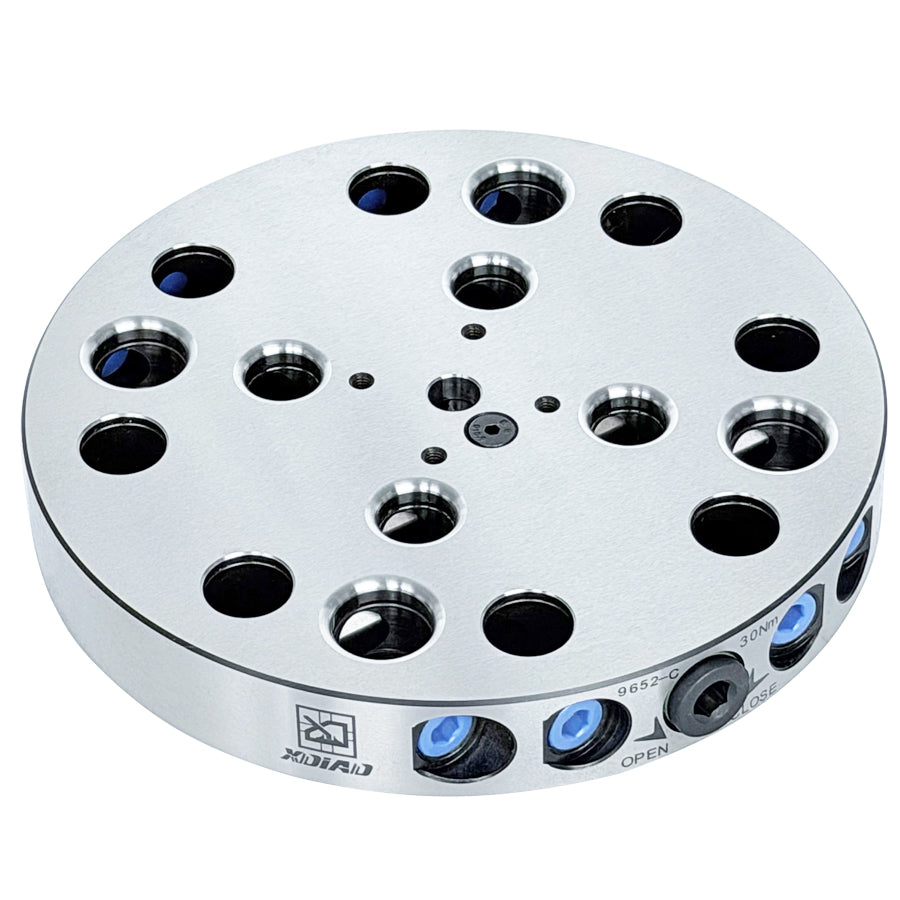

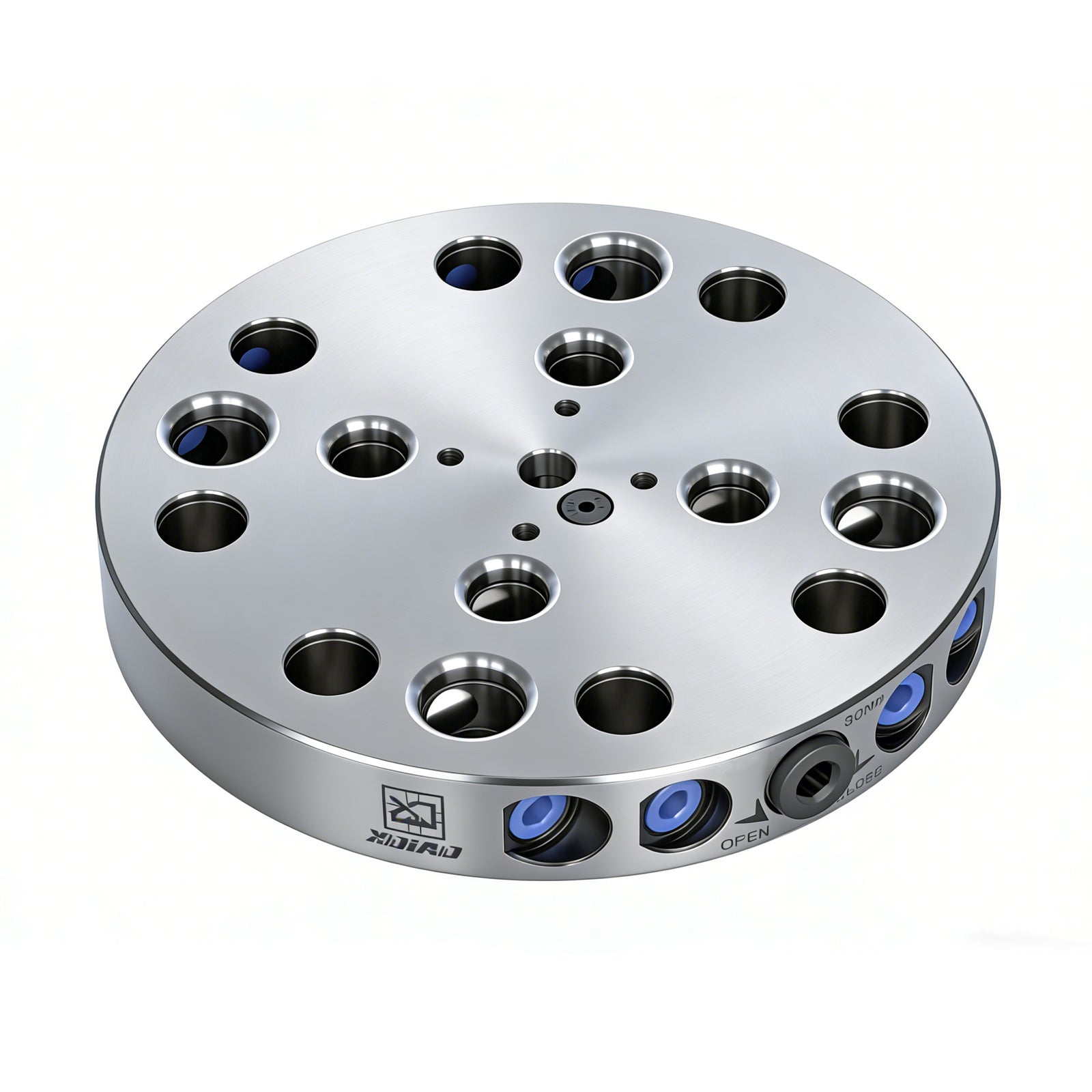

D96-C52 Zero Point Positioning Chuck
Product Overview
The D96-C52 is a zero point positioning chuck operated manually with a wrench for locking and unlocking. The clamping mechanism is fully mechanical — no external air or hydraulic supply required. Simple, reliable, and easy to use.
Key Features
Dual Grid Patterns
-
52×52mm mounting holes – compatible with 52mm vises and other fixtures
-
96×96mm mounting holes – compatible with 96mm vises and other fixtures
One chuck, two sizes — whether you are using 52mm or 96mm vises, the D96-C52 handles both. When workpiece sizes or shapes change, simply swap the top tooling without changing the chuck.
High Repeat Accuracy
-
Repeat positioning accuracy: 0.005mm
-
Designed for 5-axis rotary tables with diameters from 200mm to 300mm
Center Mounting Shaft
-
A center locating shaft can be installed on the back of the chuck for quick alignment with your 5-axis rotary table — dramatically reducing in-machine setup time.
Applications
-
5-axis machining centers
-
CNC rotary tables (Ø200–300mm)
-
High-mix, low-volume production (fast fixture changeovers)
-
Automated cells requiring high repeatability
Why Choose the D96-C52?
| Feature | Benefit |
|---|---|
| Dual hole patterns | One chuck works with both 52mm and 96mm vises |
| Mechanical locking | No air/hydraulic needed — operate with a wrench |
| 0.005mm accuracy | Precision for demanding jobs |
| Rear mounting shaft | Fast concentric alignment with rotary tables |
| Manual operation | Simple, reliable, low maintenance |
